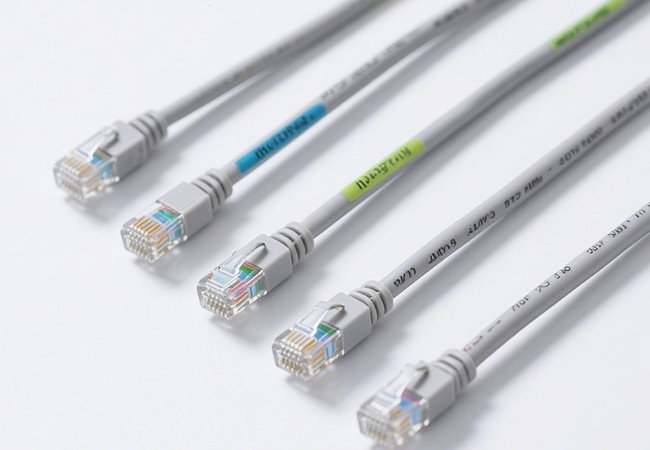

Cat 5e cable Parameter
Conductor material: copper/copper clad aluminum
Conductor cross-sectional area: 0.51mm2
Insulation layer: HDPE/FEP
Sheath material: PVC/LSZH/PE
Voltage level: low voltage
Number of cores: single core, multi-core
Minimum bending radius: fixed installation greater than 4 times the cable outer diameter, dynamic greater than 8D
Is customization supported: yes

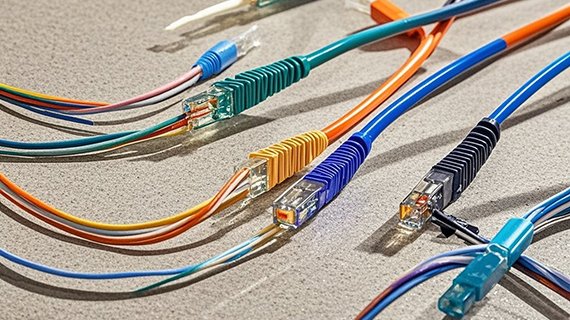

Cat 5e Cable With High Cost Performance
Hengxun Cat 5e cable uses pure copper with a cross-sectional area of 0.51mm2 as the conductor and supports 100MHz broadband transmission. High-density polyethylene is used as the insulation material, which makes it have an extremely low dielectric constant and effectively reduces signal crosstalk. In addition, its price is much lower than that of cat 6 cable, which is very cost-effective and very suitable for traditional network equipment.

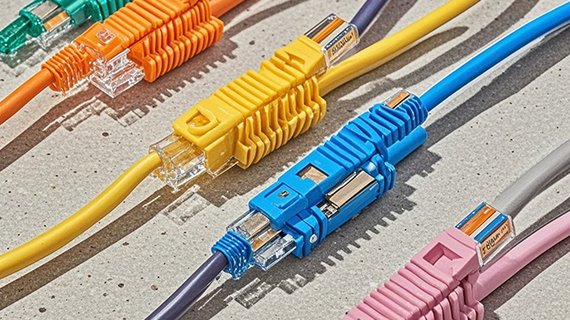

Waterproof And Moisture-Proof Cat 5e Cable
For outdoor use of Cat 5e cable, Hengxun specially uses polyethylene sheath, which makes it have excellent waterproof and moisture-proof capabilities, and can maintain stable and accurate transmission in various climate environments. Whether your project is a small office network, a security monitoring system, or industrial control, Hengxun Cat 5e cable can meet your needs.
The transmission rate of Cat 5e cable is 1Gbps, while the transmission rate of Cat 5 cable is 100Mbps.
When designing Cat 5e cable for industrial control, it is necessary to pay attention to adding anti-electromagnetic interference design and using high-temperature resistant materials.
The transmission distance of Cat 5e cable 1Gbps is less than 100 meters. For ultra-long distance, cat 6 cable or optical fiber needs to be used instead.
