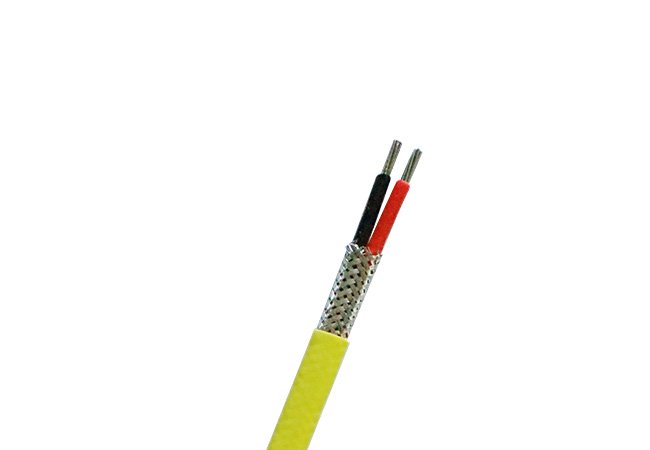

Compensation Wire Parameter
Conductor material: copper, copper alloy
Conductor cross-sectional area: 0.2-40mm2
Insulation layer: PVC/SIR/FEP/LSZH
Sheath material: PVC/SIR/FEP/LSZH
Voltage level: low voltage
Number of cores: single core, multi-core
Minimum bending radius: fixed installation greater than 5 times the outer diameter of the cable, dynamic greater than 8D
Is customization supported: yes

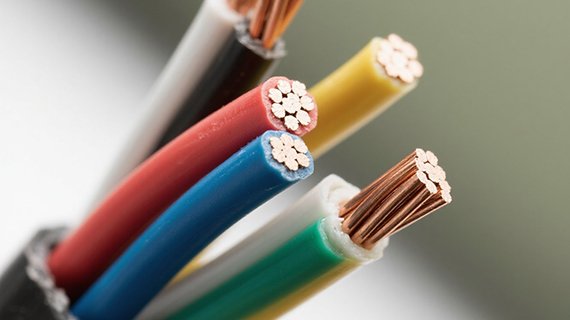

Precision Temperature Compensation Compensation Wire
Hengxun compensation wire is mainly used in your thermocouple temperature measurement system. It extends the cold end temperature of the thermocouple away from the high temperature environment to reduce your measurement error. By using high-quality copper alloy materials, the measurement accuracy can be greatly improved. In addition, it is also very easy to install, greatly simplifying your project.

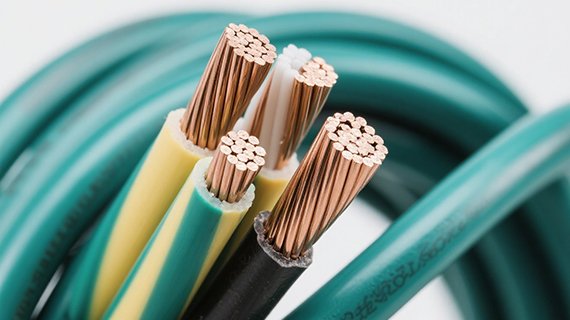

Compensation Wire for multiple environments
Hengxun also provides you with temperature-resistant compensation wire. The compensation wire series with FEP insulation can withstand temperature differences from -200 to 260 degrees and can be laid directly next to high-temperature pipelines without any impact. In addition, its structure also has a double anti-interference design, which can greatly reduce electromagnetic interference.
It may be due to the mismatch between the compensation wire and the thermocouple type. When selecting the compensation wire type, it must match the thermocouple.
It may be due to poor contact between the compensation wire and the cold end temperature sensor. Please check the terminal.
One is to match it with the thermocouple type, the second is to consider environmental factors, and the third is to consider the length limit.
