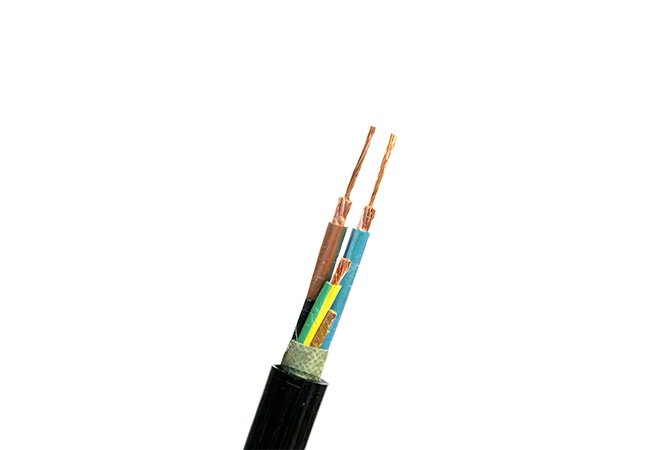

H05RNF Cable Parameter

Conductor material: copper, tinned copper

Conductor cross-sectional area: 1.5-16mm²

Insulation layer: EPDM

Sheath material: CR

Voltage level: low voltage

Number of cores: single core, multi-core

Minimum bending radius: fixed installation greater than 5 times the cable outer diameter, dynamic greater than 6D

Get Latest Price Now

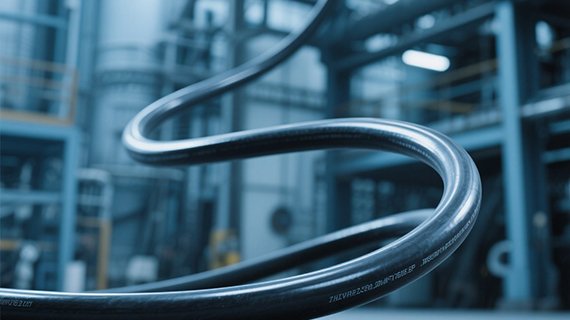

Super Strong And Flexible H05RNF Cable

Hengxun H05RNF Cable uses multiple strands of fine copper wire as conductors and thin EPDM rubber as insulation, which makes it extremely flexible and very suitable for your medium-sized mobile electrical equipment projects. Hengxun H05RNF Cable can withstand more than 500,000 bending cycles and has a long service life.

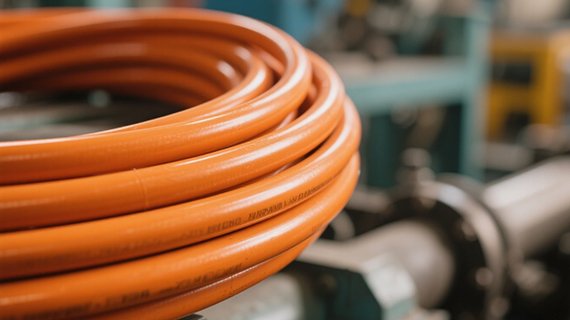

H05RNF Cable With Strong Environmental Adaptability

Hengxun H05RNF Cable has passed multiple tests and can be used in an environment ranging from -40 degrees to 60 degrees. In addition, it adopts a waterproof and oil-proof design, so that its service life in harsh environments can exceed 5 years, greatly reducing your use and maintenance costs. When choosing H05RNF Cable, we make the most stringent guarantee for our quality.

What is the difference between H05RNF Cable and h07rnf Cable?

The main difference between the two lies in the difference in voltage level, temperature range, and price level. You can consult us for specific selection.

Can H07RNF Cable be used instead of H05RNF Cable?

Because the price of h07rnf Cable is higher than that of H05RNF Cable, it is not recommended to use h07rnf Cable for low-power equipment, which will cause waste.

Is the flexibility of H05RNF Cable the same as that of H07RNF Cable?

No, the insulation layer and sheath of H05RNF Cable are thinner, so the flexibility is different.
