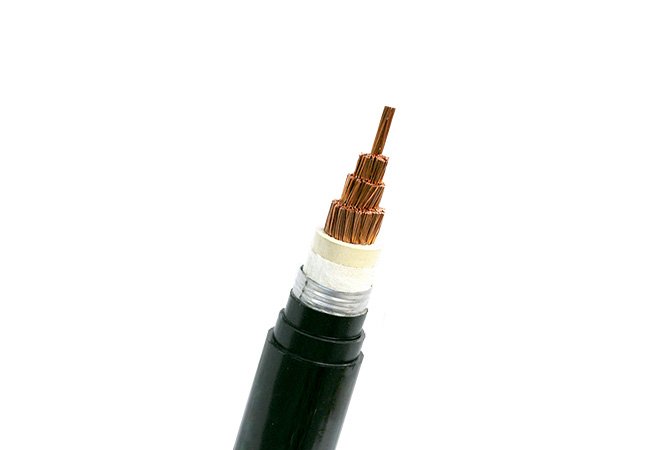

Railway Power Cable Parameter
Conductor material: copper, tinned copper
Conductor cross-sectional area: 25-1000mm2
Insulation layer: XLPE/EPR/refractory material
Sheath material: LSZH anti-rat and ant sheath/metal armor/PUR
Voltage level: low voltage, medium voltage, high voltage
Number of cores: single core, multi-core
Minimum bending radius: fixed installation greater than 8 times the outer diameter of the cable, dynamic greater than 15D
Is it customized: yes
Highly Reliable Railway Power Cable
Hengxun railway power cable is a key component to ensure the operation of your rail transit vehicles and the power supply of station facilities. Conventional railway power cable uses high-purity copper as the conductive material, combined with cross-linked polyethylene insulation material with good temperature resistance, so that our railway power cable has a service life of more than 30 years and can transmit electricity stably for a long time.
Customizable Railway Power Cable
We provide different design solutions for railway power cables used in different environments. The materials we use are safe and environmentally friendly. They are flame retardant, low halogen and smokeless, ensuring safety to the greatest extent. In addition, in areas with strong electromagnetic interference, we will also design double shielding for you to suppress interference.
When using railway power cables in direct buried sections, it is necessary to consider using metal sheaths or rat-proof sheaths to protect the cables.
It is usually due to insufficient current carrying capacity or poor heat dissipation. It is recommended to choose railway power cables with appropriate current carrying capacity.
PVC sheaths can be used in some areas. They are relatively cheaper and more wear-resistant, but they are generally oil-resistant and temperature-resistant, and are suitable for open-air laying of viaducts.
