Silicone Insulated Wire Parameter
Conductor material: copper, tinned copper, copper alloy
Conductor cross-sectional area: 0.2-1000mm2
Insulation layer: SIR
Sheath material: SIR/glass fiber braiding/TPU
Voltage level: low voltage/medium voltage/high voltage
Number of cores: single core, multi-core
Minimum bending radius: fixed installation greater than 4 times the outer diameter of the cable, dynamic greater than 6D
Is it customized: yes

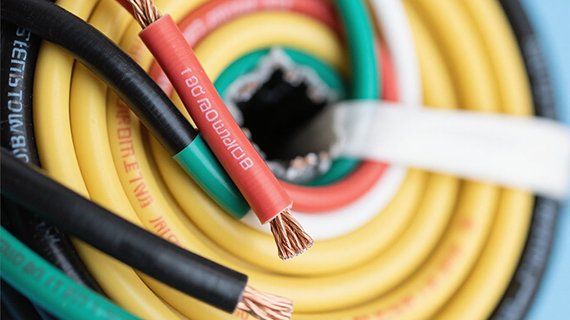

Ultra-wide temperature range Silicone Insulated Wire
Hengxun silicone insulated wire uses silicone rubber as the insulation layer, which has excellent high temperature resistance and can withstand a temperature range of -60 degrees to 200 degrees. It can also work stably in extreme environments, and is very suitable for your various high-temperature, mobile equipment and special environment projects.

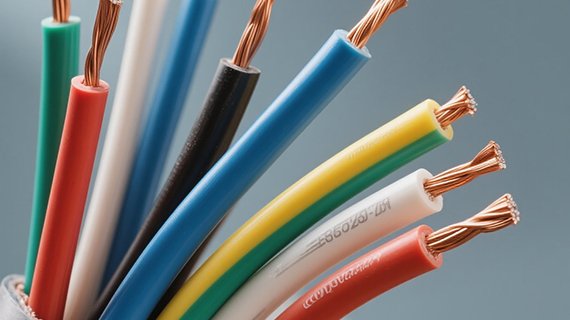

Ultra-flexible silicone insulated wire
Using ultra-fine copper wires twisted together as conductors and an integrated silicone insulating sheath, our silicone insulated wire has extraordinary flexibility and a bending life of more than 100,000 times, which is very suitable for your robotic arms, drag chains and other cable needs. In addition, due to its excellent chemical corrosion resistance, it can also be efficiently transmitted in a chemical environment without being affected.
Not recommended, silicone insulated wire material price is much more expensive than PVC. It is recommended to use silicone insulated wire in specific scenarios, and use XLPE and other cables instead in general scenarios.
This is because the surface of silicone is smooth and the adhesive has poor adhesion. It is recommended to use factory molded joints or use plasma treatment to improve adhesion.
It can be covered with a copper wire shielding layer or conductive carbon black can be added.
